093303 Rear Pneumatic (1: 1,30)
SCANIA

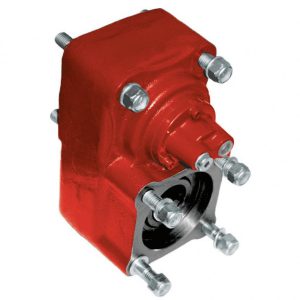

Heavy Duty Power Take-off two gears, to connect Iso 4 bolts pumps. (Only for vehicles with PTO Adapter) Pneumatic shifti...
Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with original rear adapter. Optional: Passing contact switch. Engine to PTO ratio High Normal Low GR875 (Z=32 side gear) 1: 1,32 1: 1,05 GR905 (Z=32 side gear) 1: 1,32 1: 1,05 GRS895 (Z=32 side gear) 1: 1,69 […]
| SKU | PTO internal ratio | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 093803 | 1:1.04 | Pump (DIN 5462) | - | - | - | - |
| 093802 | 1:1.04 | Flange | - | - | - | - |
| 093403 | 1:1.32 | Pump (DIN 5462) | - | - | - | - |
| 093402 | 1:1.32 | Flange | - | - | - | - |
Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with original rear adapter. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 11 |
| Gearbox | GRS-895, GRS-905, GRSO-905, GRSO-925, GR-875, GR-905 |
| PTO internal ratio | 1:1.32, 1:1.04 |
| Output type | Flange, Pump (DIN 5462) |
