109903 Rear Pneumatic (1:1,32)
ZF
Power Take-off two gears, internal ratio 1:1,32, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bo...

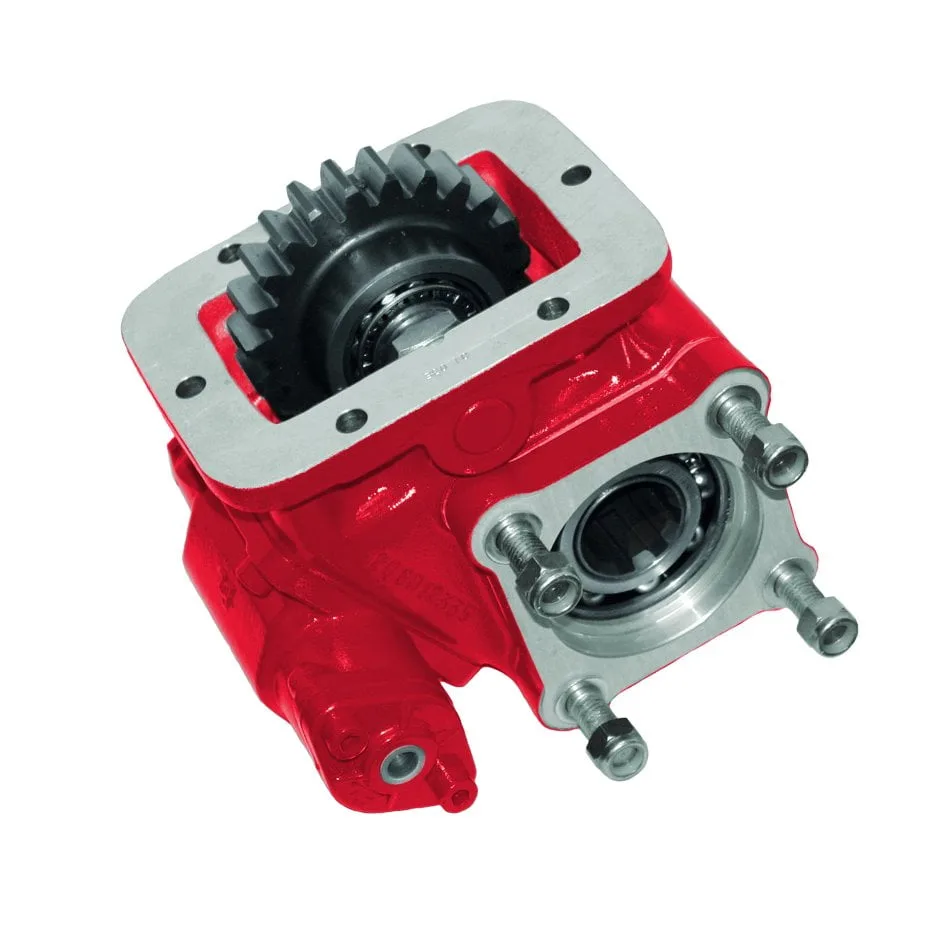

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right, left side of the Gearbox. Optional: Passing contact switch. NOTES Note A Air connection, thread M12 – 1.5 Note B Rotation Note C Passing contact switch. P/N 100070022 Note D Connector with 3m. of cable P/N 9026899 Note […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 1027303 | Pump (DIN 5462) | Mechanic shifting - Right | - | - | - | - |
| 1018803 | Pump (DIN 5462) | Pneumatic shifting - Left | - | - | - | - |
| 109203 | Pump (DIN 5462) | Pneumatic shifting - Right | - | - | - | - |
| 1027302 | Flange | Mechanic shifting - Right | - | - | - | - |
| 1018802 | Flange | Pneumatic shifting - Left | - | - | - | - |
| 109102 | Flange | Pneumatic shifting - Right | - | - | - | - |

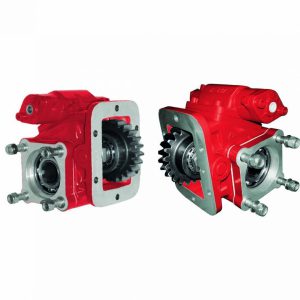

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right, left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Right, Left |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 9 |
| Engine to PTO ratio | 1: 1,35 |
| Gearbox | S5-42/4.65 |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Mechanic shifting - Right, Pneumatic shifting - Right, Pneumatic shifting - Left |
