7028804 Adapter Kit for D11
ENGINE PTO
Adapter Kit for Volvo D11 series engines to connect ISO 4 bolts pumps.

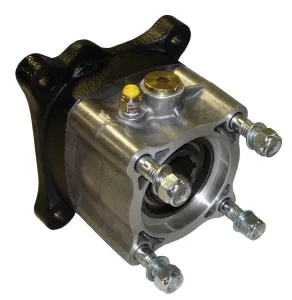

Base PTO + flange Kit (without shaft) constant mesh 1:1 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, output Iso 4 bolts. Optional: Passing contact switch and adapter shaft. RATIO ENGINE TO PTO RATIO Normal High R1000, R1400, R1700 1: 0,700 SR1400, SR1700, SR1900, VT2014B, VT2214B, VT2514B, DT-2412C 1: 0,700 1: 0,880 SR2000 […]
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1196K02 | Flange | - | - | - | - |
| 1196K03 | Pump (DIN 5462) | - | - | - | - |
Base PTO + flange Kit (without shaft) constant mesh 1:1 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, output Iso 4 bolts. Optional: Passing contact switch and adapter shaft.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 590 |
| Intermittent Torque (Nm) | 826 |
| Power (1000 r.p.m.) | 84 C.V // 62 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 8 |
| Adapter shaft kit | R1000, SR1700, ... (L=267mm): 110104, R1000, ... Retarder (L=302mm) 110304, DT-2412C, V2412 (L=229 mm) 116504 |
| Gearbox | SRO-2400, V-2812AT, VT-1708, VO-2512AT, VT-2009B, VO-3112AT, VT-2214B, VT-2512C, VT-2514B, VT-2812C, VTO-2214B, DT-2412 C, VTO-2514B, AT-2412C, AT-2412D, R-1000, AT-2512C, R-1400, AT-2612D, R-1700, AT-2612E, SR-1400, AT-2812C, SR-1700, AT-2812D, SR-1900, V-2412AT, SR-2000, V-2512AT |
| Output type | Flange, Pump (DIN 5462) |
Adapter Kit for Volvo D11 series engines to connect ISO 4 bolts pumps.
