034503 SIDE MOUNT PNEUMATIC
CLARK
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the...

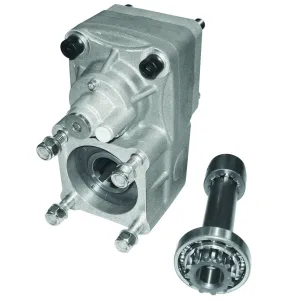

Power Take-off 2 gears, ratio 1:1,32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch. Internal Ratio Gearbox Internal torque 6109DT, FS6209A, FS6309A, FS8209A, FS8309A, ES11109, ES11209 1:1,009 6109OD, FSO6209A, FSO6309A, FSO8209A, FSO8309A, ESO12109, ES12209 1:1,351
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1210902 | Flange | 8.00 | 142.60 | 112.00 | 193.00 |
| 1210903 | Pump (DIN 5462) | 8.00 | 142.60 | 112.00 | 193.00 |
Power Take-off 2 gears, ratio 1:1,32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 8 |
| Note A | Engage PTO, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Pressure switch. P/N 100070018 |
| Note E | Passing contact switch. P/N 9024999 |
| Gearbox | FSO-8309A, 6109-OD, FS-8309A, FS-6209A, FS-6309A, 6109-DT, FS-8209A, FSO-8209A, FSO-6209A, FSO-6309A |
| Output type | Flange, Pump (DIN 5462) |
