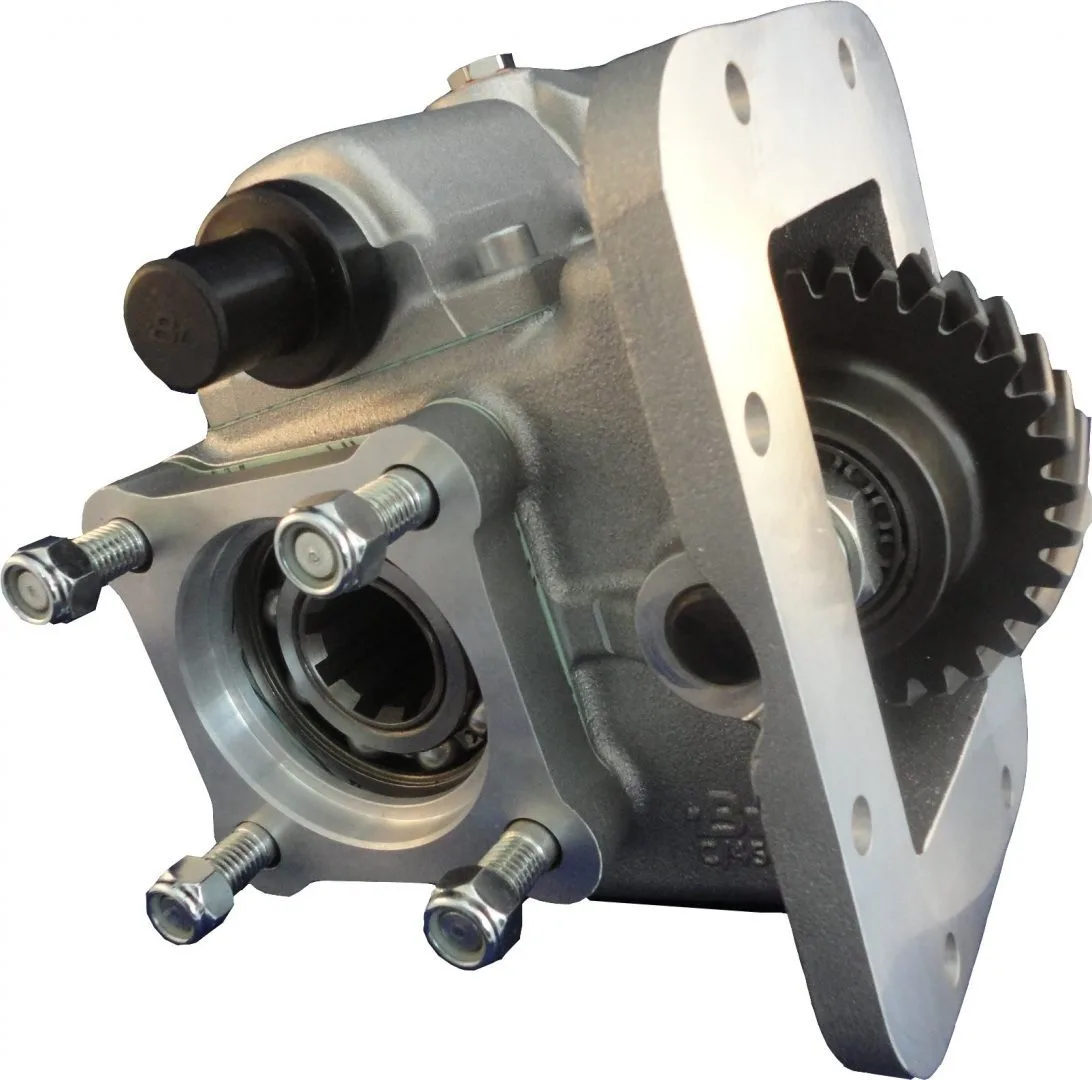

199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...
PTO ISUZU MYY 6E. SIDE M. 2 GEARS VACUUM S/A Continuous Torque (Nm): 200 Intermittent Torque (Nm): 280 Max. Power (kW):21 Mounting Position: Izquierdo / Left Pump rotation: Izquierdo / Left Hand Mounting Kit: 8046933
| SKU | Shifter type | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 1910402 | Mechanical Shifting | Flange | - | - | - | - |
| 1910403 | Mechanical Shifting | Pump (DIN 5462) | - | - | - | - |
| 1910302 | Pneumatic shifting | Flange | - | - | - | - |
| 1910303 | Pneumatic shifting | Pump (DIN 5462) | - | - | - | - |
| 1910502 | Vacuum Shifting | Flange | - | - | - | - |
| 1910503 | Vacuum Shifting | Pump (DIN 5462) | - | - | - | - |
PTO ISUZU MYY 6E. SIDE M. 2 GEARS VACUUM S/A Continuous Torque (Nm): 200 Intermittent Torque (Nm): 280 Max. Power (kW):21 Mounting Position: Izquierdo / Left Pump rotation: Izquierdo / Left Hand Mounting Kit: 8046933
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Max. Power (kW) | 21 |
| Mounting Position | Left |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 12 |
| Engine to PTO ratio | 1: 0,83 |
| Gearbox | MYY-6E |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
| Output type | Flange, Pump (DIN 5462) |
