199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...

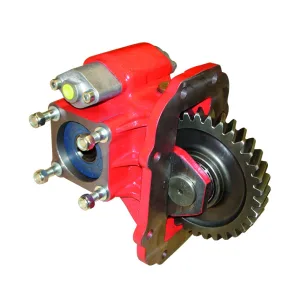

PTO ISUZU MJT7R. SIDE M. 2 GEARS, PNEUMATIC Continuous Torque (Nm): 350 Intermittent Torque (Nm): 490 Max. Power (kW):37 Mounting Position: Izquierdo / Left Pump rotation: Izquierdo / Left Hand Mounting Kit: 8044333
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1910602 | Flange | - | - | - | - |
| 1910603 | Pump (DIN 5462) | - | - | - | - |
PTO ISUZU MJT7R. SIDE M. 2 GEARS, PNEUMATIC Continuous Torque (Nm): 350 Intermittent Torque (Nm): 490 Max. Power (kW):37 Mounting Position: Izquierdo / Left Pump rotation: Izquierdo / Left Hand Mounting Kit: 8044333
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 350 |
| Intermittent Torque (Nm) | 490 |
| Max. Power (kW) | 37 |
| Mounting Position | Left |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 20 |
| Engine to PTO ratio | 1: 1,24 |
| Gearbox | MJT-7R |
| Output type | Flange, Pump (DIN 5462) |
