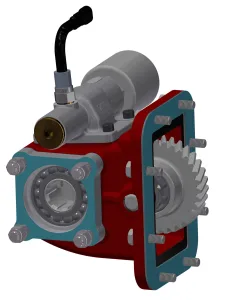

199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Electric shifting. Mounting on the left side of the Gearbox.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1911930 | Pump (UNI) | - | - | - | - |
| 1911902 | Flange | - | - | - | - |
| 1911903 | Pump (DIN 5462) | - | - | - | - |
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Electric shifting. Mounting on the left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 250 |
| Intermittent Torque (Nm) | 350 |
| Power (1000 r.p.m.) | 36 C.V // 27 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 14 |
| Shifter type | Solenoid-based Electric (needs 9094499 electric kit) |
| Note A | Rotation |
| Note B | Electric Shifting |
| Note C | Electric Kit with Button control P/N 9094499 |
| Note D | Passing contact switch P/N 100070028 |
| Gearbox | MZZ-6C, MZZ-6F, MZZ-6U, MZZ-6W, MZZ-5D |
| Output type | Pump (DIN 5462), Pump (UNI), Flange |
