199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...

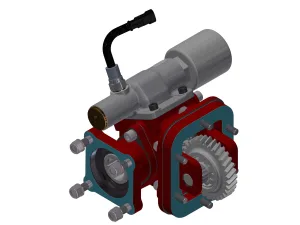

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Electric shifting, mounting on left side of the Gearbox.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1912002 | Flange | - | - | - | - |
| 1912003 | Pump (DIN 5462) | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Electric shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 12 |
| Shifter type | Solenoid-based Electric (needs 9094499 electric kit) |
| Note A | Rotation |
| Note B | Electric Shifting |
| Note C | Electric Kit with Button control P/N 9094499 |
| Note D | Passing contact switch P/N 100070028 |
| Gearbox | MYY-5T, MYY-6P, MYY-6S, MYY-5M |
| Output type | Flange, Pump (DIN 5462) |
