199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...

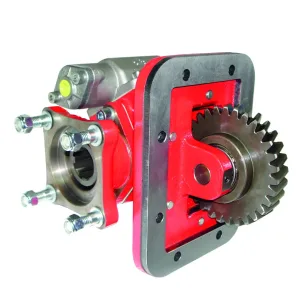

Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch. Engine to PTO ratio Gearbox Ratio MLD6A 1:0,79 MLD6E 1:0,83 MLD7R 1:0,83
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 196002 | Flange | 10.00 | 180.00 | - | 145.00 |
| 196003 | Pump (DIN 5462) | 10.00 | 180.00 | - | 145.00 |
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 10 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m. of cable P/N 9026899 |
| Gearbox | MLD-6A, MLD-6E, MLD-7R |
| Output type | Flange, Pump (DIN 5462) |
