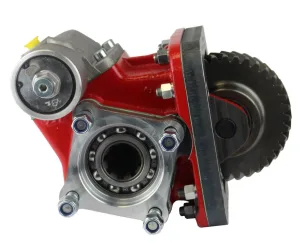

265403 Side Mount, Pneumatic
HINO
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, pneumatic or mechanic shifting ...
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, pneumatic or mechanic shifting mounting on the left side of the Transmission. Optional: Passing contact switch. Technical Datasheet
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 265502 | Flange | Vacuum Shifting | - | - | - | - |
| 265602 | Flange | Mechanical Shifting | - | - | - | - |
| 265302 | Flange | Pneumatic shifting | - | - | - | - |
| 265503 | Pump (DIN 5462) | Vacuum Shifting | - | - | - | - |
| 265603 | Pump (DIN 5462) | Mechanical Shifting | - | - | - | - |
| 365303 | Pump (DIN 5462) | Pneumatic shifting | - | - | - | - |
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, pneumatic or mechanic shifting mounting on the left side of the Transmission. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 250 |
| Intermittent Torque (Nm) | 350 |
| Power (1000 r.p.m.) | 35 C.V // 27 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 16 |
| Engine to PTO ratio | 1:0.85 |
| Gearbox | RE-61, RE-62 |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
