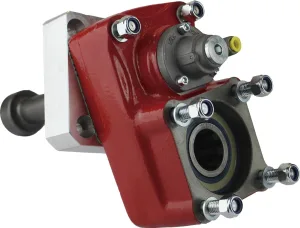

280303 REAR PNEUMATIC (1:1)
MAZ
Power Take-off two gears, with an internal ratio of 1:1 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifti...
Power Take-off two gears, with an internal ratio of 1:1.32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps. Optional: Passing contact switch.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 280202 | Flange | 5.70 | 293.00 | 112.00 | 193.00 |
| 280203 | Pump (DIN 5462) | 5.70 | 293.00 | 112.00 | 193.00 |
Power Take-off two gears, with an internal ratio of 1:1.32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 5.7 |
| Engine to PTO ratio | 1: 1.043 |
| Gearbox | YAMZ-239 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Passing contact switch. P/N 100070018 |
| Note E | Passing contact switch. P/N 9024999 |
| Output type | Flange, Pump (DIN 5462) |
