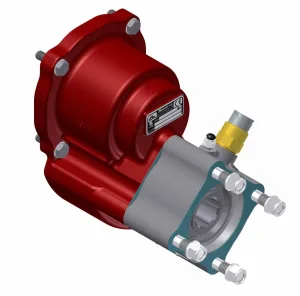

301303 Rear Pneumatic
SHAANXI
Power Take-off two gears, rear mounting. Pneumatic shifting, includes auxiliary piston that assures the PTO is running w...
Heavy Duty Power Take-off two gears, rear mounting. Pneumatic shifting, includes auxiliary piston that assures the PTO is running with low range speeds of gearbox. Speed # 1 2 3 4 Engine to PTO ratio 0,544 0,706 0,916 1, 172 Note A Air connection, thread 1/4” BSP Note B Rotation Note C Auxiliary piston Note […]
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 301403 | Pump (DIN 5462) | - | - | - | - |
| 301402 | Flange | - | - | - | - |
Heavy Duty Power Take-off two gears, rear mounting. Pneumatic shifting, includes auxiliary piston that assures the PTO is running with low range speeds of gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 400 |
| Intermittent Torque (Nm) | 500 |
| Power (1000 r.p.m.) | 57 C.V // 42 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Anti Clockwise |
| Gearbox | 12JS-160T, 12JS-200T |
| Output type | Flange, Pump (DIN 5462) |
