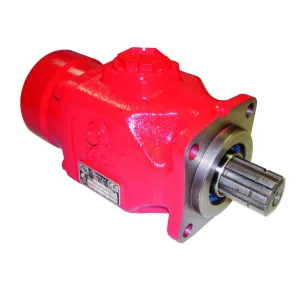

Axial Piston pump with reversible Rotation direction.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 506206 | BZ 12 | 9.70 | 224.00 | 112.00 | 123.00 |
| 500106 | BZ 20 | 9.70 | 224.00 | 112.00 | 123.00 |
| 500206 | BZ 30 | 9.70 | 224.00 | 112.00 | 123.00 |
| 500306 | BZ 40 | 13.60 | 224.00 | 112.00 | 123.00 |
| 500406 | BZ 50 | 14.00 | 224.00 | 112.00 | 123.00 |
| 5011706 | BZ 58 | 12.60 | 224.00 | 112.00 | 123.00 |
| 5033706 | BZ 61 | 15.90 | 247.00 | 133.00 | 148.00 |
| 5033806 | BZ 71 | 15.70 | 247.00 | 133.00 | 148.00 |
| 5033606 | BZ 81 | 16.00 | 247.00 | 133.00 | 148.00 |
| 5033906 | BZ 101 | 16.20 | 247.00 | 133.00 | 148.00 |
Axial Piston pump with reversible Rotation direction.
| Atributo | Valor |
|---|---|
| Tamaño de la bomba | 71, 81, 101, 20, 30, 40, 50, 12, 58, 61 |
| Displacement (cm3/rev) | 11.7 (BZ 12), 21.5 (BZ 20), 32.4 (BZ 30), 40.5 (BZ 40), 48.5 (BZ 50), 58.3 (BZ 58), 60 (BZ 61), 70 (BZ 71), 80 (BZ 81), 100 (BZ 101) |
| Maximum peak pressure (P3) (bar) | 320, 350 |
| Operating pressure (kg/cm2) max. cont. | 250 (BZ 12, BZ 20, BZ 30, BZ 40 and BZ 50), 230 (BZ 58) |
| Operating Speed (r.p.m) max. | 2000 (BZ 12 and BZ 20), 1700 (BZ 30), 1600 (BZ 40 and BZ 50), 1500 (BZ 58) |
| Operating Speed (r.p.m) max. cont. | 1700 (BZ 12 and BZ 20), 1400 (BZ 30), 1300 (BZ 40 and BZ 50), 1200 (BZ 58) |
| Input Pressure (recommended) | 0.7÷ 3 bar (abs) |
| Temperatures | From -25ºC to 80ºC |
| Recommended Oil | The specification of the fluid must conform to DIN 51524 / 51525 (type HLP). |
| Viscosity recommended | De 12 ÷ 100 mm2/s (cST) |
| Viscosity allowed | 750 mm2/s (cST) |
| Note A (BZ 12, BZ 20, BZ 30) | Oil Inlet, thread = BSP 1” |
| Note A (BZ 40, BZ 50, BZ 58) | Oil Inlet, thread = BSP 1 1/4” |
| Note B | Oil outlet, thread BSP 1/2” |
| Note C | Oil drain plug |
| Note D | Drain hole (Between shaft-Seals) |
| Type | BZ 12, BZ 20, BZ 30, BZ 40, BZ 50, BZ 58, BZ 61, BZ 71, BZ 81, BZ 101 |
