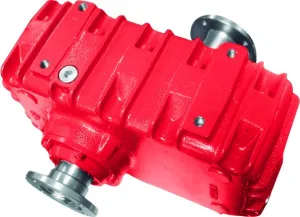

Our high-power gearbox features a bottom input and top output design that delivers efficient power transmission for your application. With various internal ratios available, ensuring optimal performance and reliability.
| SKU | Ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 603799 | 1: 1.11 | - | 410.00 | 317.00 | 264.00 |
| 601599 | 1: 1.20 | - | 410.00 | 317.00 | 264.00 |
| 601399 | 1: 1.75 | - | 410.00 | 317.00 | 264.00 |
| 604299 | 1: 1.90 | - | 410.00 | 317.00 | 264.00 |
| 601499 | 1: 2.44 | - | 410.00 | 317.00 | 264.00 |
| 604099 | 1: 2.92 | - | 410.00 | 317.00 | 264.00 |
Our high-power gearbox features a bottom input and top output design that delivers efficient power transmission for your application. With various internal ratios available, ensuring optimal performance and reliability.
| Atributo | Valor |
|---|---|
| Maximum torque (Nm) Cont | 940 |
| Max. power continuous | 130 C.V. // 97 Kw |
| Net weight (kg) | 59 |
| Max. Oil Level Capacity | 2 litres |
| Rotation input - output | Opposite |
| Note A | Oil vent |
| Note B | Oil charging, drain, and level plugs |
| Note C | Fitting holes (M14x2) |
| Note D | Flanges drive |
| Oil type: | SAE 80W 90 |
| Ratio | 1: 1.11, 1: 1.20, 1: 1.75, 1: 1.90, 1: 2.44, 1: 2.92 |
