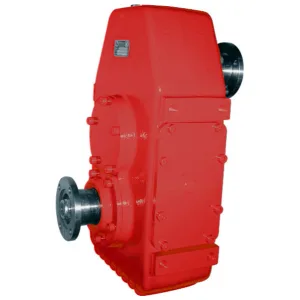

High power vertical gear up box, bottom input-upper output. Different internal ratios are available. Technical Datasheet
| SKU | Ratio | Input / Output | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 608199 | 1: 1.86 | Standard | - | 420.00 | 280.00 | 264.00 |
| 609999 | 1: 2 | Standard | - | 420.00 | 280.00 | 264.00 |
| 6015199 | 1: 2.5 | Same side | - | 420.00 | 222.00 | 264.00 |
| 609099 | 1: 2.5 | Standard | - | 420.00 | 280.00 | 264.00 |
| 609499 | 1: 4.59 | Standard | - | 420.00 | 280.00 | 264.00 |
| 6015099 | 1: 4.59 | Same side | - | 420.00 | 222.00 | 264.00 |
High power vertical gear up box, bottom input-upper output. Different internal ratios are available.
| Atributo | Valor |
|---|---|
| Maximum input torque | 940 |
| Max. power continuous | 130 C.V. // 97 Kw |
| Net weight (kg) | 59 |
| Rotation input - output | Equal |
| Note A | Oil vent |
| Note B | Oil drain plug |
| Note C | Oil level plug |
| Note D | Flanges drive |
| Note E | Fitting holes M14x2 |
| Oil type: | SAE 80W 90 |
| Ratio | 1: 1.86, 1: 2, 1: 2.5, 1: 4.59 |
| Input / Output | Standard, Same side |
