07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

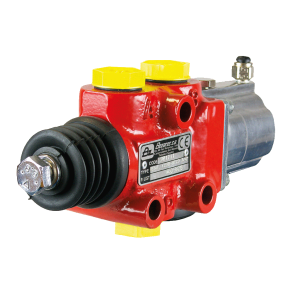

Circuit selector valve with pneumatic shifting to operate from the cabin of the vehicle.
| SKU | Thread | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 901011 | 1" GAS | 4.60 | 217.00 | 72.00 | 110.00 |
| 901111 | 3/4" GAS | 2.90 | 196.00 | 64.00 | 80.00 |
Circuit selector valve with pneumatic shifting to operate from the cabin of the vehicle.
| Atributo | Valor |
|---|---|
| Maximum pressure | 350 Bar |
| Maximum pressure to working slide | 250 Bar |
| Maximum flow | 200 L/min (1" GAS), 150 L/min (3/4" GAS) |
| Air pressure | 7-10 Bar |
| Dimensions (mm) A | 217 (1" GAS), 196 (3/4" GAS) |
| Dimensions (mm) B | 110 (1" GAS), 80 (3/4" GAS) |
| Dimensions (mm.) C | 72 (1" GAS), 64 (3/4" GAS) |
| Dimensions (mm.) D | Thread |
| Thread | 1" GAS, 3/4" GAS |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
