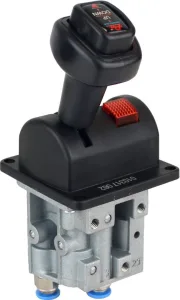

2& 3 ways pneumatic controls with warning light for PTO engagement or to operate over the tipping valve. Combined with appropriate tipping valve, enables proportional control for lowering dump bodies.
| SKU | Model | Air fittings & tubing | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 9013213 | BZ-125C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 9m | 0.75 | 154.00 | 56.00 | 70.00 |
| 909313 | BZ-125C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 25m | - | 154.00 | 56.00 | 70.00 |
| 9010013 | BZ-125C | with air fittings 1/8”NPT & tubing Ø1/4” included L = 7m | - | 154.00 | 56.00 | 70.00 |
| 9010513 | BZ-125C | without air fittings & tubing included | - | 154.00 | 56.00 | 70.00 |
| 9012013 | BZ-125C+ lever interlock | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 9m | 0.72 | 154.00 | 56.00 | 70.00 |
| 909413 | BZ-125C+ lever interlock | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 25m | - | 154.00 | 56.00 | 70.00 |
| 909913 | BZ-125C+ lever interlock | with air fittings 1/8”NPT & tubing Ø1/4” included L = 7m | - | - | - | - |
| 9010413 | BZ-125C+ lever interlock | without air fittings & tubing included | - | 154.00 | 56.00 | 70.00 |
| 9013313 | BZ -126C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 12m | 0.80 | 154.00 | 56.00 | 70.00 |
| 909513 | BZ -126C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 25m | - | 154.00 | 56.00 | 70.00 |
| 9010113 | BZ -126C | with air fittings 1/8”NPT & tubing Ø1/4” included L = 7m | - | 154.00 | 56.00 | 70.00 |
| 9011413 | BZ -126C | without air fittings & tubing included | 0.80 | 154.00 | 56.00 | 70.00 |
| 9011813 | BZ -127C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 12m | - | 164.00 | 56.00 | 70.00 |
| 909813 | BZ -127C | with air fittings 1/8”NPT & tubing Ø1/4” included L = 7m | - | 154.00 | 56.00 | 70.00 |
| 9011513 | BZ -127C | without air fittings & tubing included | 0.59 | 154.00 | 56.00 | 70.00 |
| 9013213 | BZ -127C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 12m | - | - | - | - |
| 9011913 | BZ -128C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 12m | 0.80 | 154.00 | 56.00 | 70.00 |
| 909613 | BZ -128C | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 25m | - | 154.00 | 56.00 | 70.00 |
| 909713 | BZ -128C | without air fittings & tubing included | - | 154.00 | 56.00 | 70.00 |
| 9011313 | BZ -128C | without air fittings & tubing included | - | 154.00 | 56.00 | 70.00 |
2& 3 ways pneumatic controls with warning light for PTO engagement or to operate over the tipping valve. Combined with appropriate tipping valve, enables proportional control for lowering dump bodies.
| Atributo | Valor |
|---|---|
| Nº of ways | 2 (BZ -125C), 3 (BZ -126C, BZ -127C, BZ -128C) |
| Nº of fittings | 3x -Straight ( BZ- 125C), 4x -Straight (BZ -126C, BZ -127C, BZ -128C) |
| Lever interlock included | BZ-125C (optional), BZ-126C and BZ- 127C |
| PTO Switch Off included | BZ-126C and BZ-128C |
| Working fluid | Air |
| Nominal Pressure | 6 - 8 bar |
| Maximum pressure | 10 bar |
| Working temperature | -20ºC - +80ºC |
| Model | BZ-125C, BZ-125C+ lever interlock, BZ -126C, BZ -127C, BZ -128C |
| Air fittings & tubing | with air fittings 1/8”BSP & tubing Ø4x6mm included L = 9m, with air fittings 1/8”BSP & tubing Ø4x6mm included L = 12m, with air fittings 1/8”BSP & tubing Ø4x6mm included L = 25m, with air fittings 1/8”NPT & tubing Ø1/4” included L = 7m, without air fittings & tubing included |
