07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

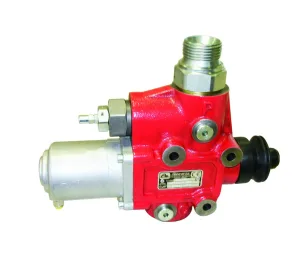

250 litres proportional open circuit tipping valve with pneumatic shifting pressure constrainer valve adjustable up. It incorporates a non-return pistón valve, end-of-stroke valve by means of puller or pusher, optional operation indicator, pressure socket and pressure switch.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 9051690 | BZDP 250C | 10.15 | 298.00 | 100.00 | 213.00 |
| 9052290 | BZDP 250C puller | 10.15 | 337.00 | 100.00 | 213.00 |
250 litres proportional open circuit tipping valve with pneumatic shifting pressure constrainer valve adjustable up. It incorporates a non-return pistón valve, end-of-stroke valve by means of puller or pusher, optional operation indicator, pressure socket and pressure switch.
| Atributo | Valor |
|---|---|
| Flow | 250 L. |
| Max. Pressure: | 250 BAR (BZDP 250), 220 BAR (BZDP 250C), 220 BAR (BZDP 250C puller) |
| Thread | 1 1/4” BSP |
| Note A | Tip 1/8” BSP |
| Note B | Low 1/8” BSP |
| Type | BZDP 250, BZDP 250C, BZDP 250C puller |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
