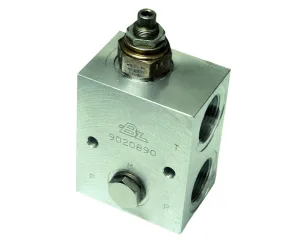

Today, we have in our range of products a complete relief valve series. This valve is used to protect the hydraulic circuit avoiding overpressure which can produce a serious damage in the hydraulic equipment.
| SKU | Thread | Action | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 9020990 | BSP 1/2" | Pilot operated cartridge | 0.70 | 80.00 | 45.00 | 65.00 |
| 9052690 | BSP 3/4" | Direct acting | 0.75 | 90.00 | 45.00 | 69.00 |
| 9020890 | BSP 3/4" | Pilot operated cartridge | 0.70 | 80.00 | 45.00 | 65.00 |
| 9021090 | BSP 1" | Pilot operated cartridge | 1.20 | 99.00 | 50.00 | 80.00 |
| 9063790 | BSP 1"-high pressure | Pilot operated cartridge | 2.60 | 99.00 | 50.00 | 80.00 |
Today, we have in our range of products a complete relief valve series. This valve is used to protect the hydraulic circuit avoiding overpressure which can produce a serious damage in the hydraulic equipment.
| Atributo | Valor |
|---|---|
| Flow | 80 L. min (BSP 1/2" ), 120 L. min. (BSP 3/4"), 200 L. min. (BSP 1" and BSP 1"-high pressure) |
| Max. Pressure: | 350 Bar (BSP 1/2"and BSP 3/4"), 220 Bar (BSP 1"), 400 Bar (BSP 1"-high pressure) |
| Gauge | 1/4 " BSP |
| Note A (mm) | 65 (BSP 1/2" ), 69 (BSP 3/4"), 80 (BSP 1") |
| Note B (mm) | 80 (BSP 1/2" ), 90 (BSP 3/4"), 99 (BSP 1") |
| Note C (mm) | 45 (BSP 1/2" ), 45 (BSP 3/4"), 50 (BSP 1") |
| Note D (mm) | 45 (BSP 1/2" ), 45 (BSP 3/4"), 60 (BSP 1") |
| Note E (mm) | 10 (BSP 1/2" ), 18 (BSP 3/4"), 10 (BSP 1") |
| Note F (mm) | 40 (BSP 1/2" ), 47 (BSP 3/4"), 50 (BSP 1") |
| Note G (mm) | 6.5 (BSP 1/2" ), 6.5 (BSP 3/4"), 8.5 (BSP 1") |
| Thread | BSP 1/2", BSP 3/4", BSP 1", BSP 1"-high pressure |
| Action | Direct acting, Pilot operated cartridge |
