07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

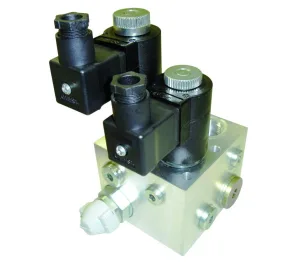

Electrical tipping valve aimed at light and medium vehicles. With a maximum flow of 40 litres, it is capable of regularize the tipper speed descent, it also offers possibilitie to mount on all of our oil tank range. It includes a complete electric kit (wires, relay, electric bell and electric end-of-stroke) as option.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 9057990 | BZDE 40. 12V | 2.58 | 150.00 | 85.00 | 119.00 |
| 9058490 | BZDE 40. 24V | 2.58 | 150.00 | 85.00 | 119.00 |
Electrical tipping valve aimed at light and medium vehicles. With a maximum flow of 40 litres, it is capable of regularize the tipper speed descent, it also offers possibilitie to mount on all of our oil tank range. It includes a complete electric kit (wires, relay, electric bell and electric end-of-stroke) as option.
| Atributo | Valor |
|---|---|
| Flow | 40 L |
| Max. Pressure: | 350 Bar |
| Thread | 1/2 ” BSP |
| Note A | Pressure switch |
| Note B | Relief valve |
| Note C | Low screw emergency (Optional) |
| Note D | Tipping solenoid |
| Note E | Lowering solenoid |
| Type | BZDE 40. 12V, BZDE 40. 24V |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
