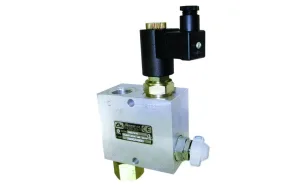

Close and open circuit electric tipping valve no regular and 250 bar relief valve.
| SKU | Voltage | Thread (Note A) | Circuit | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|---|
| 9058190 | 12 V. | 1/2" BSP | Closed | 1.44 | - | - | - |
| 9058590 | 12 V. | 1/2" BSP | Open | 1.44 | - | - | - |
| 9057890 | 12 V. | 3/4" BSP | Closed | 1.44 | - | - | - |
| 9058690 | 12 V. | 3/4" BSP | Open | 1.44 | - | - | - |
| 9058790 | 24 V. | 1/2" BSP | Closed | 1.44 | - | - | - |
| 9058890 | 24 V. | 1/2" BSP | Open | 1.44 | - | - | - |
| 9058990 | 24 V. | 3/4" BSP | Closed | 1.44 | - | - | - |
| 9059090 | 24 V. | 3/4" BSP | Open | 1.44 | - | - | - |
Close and open circuit electric tipping valve no regular and 250 bar relief valve.
| Atributo | Valor |
|---|---|
| Standard pressure setting | 150 Kg/cm2 (1/2" BSP), 180 Kg/cm2 (3/4" BSP) |
| Max. Pressure: | 250 Kg/cm2 |
| Max. Flow | 40 l/min (1/2" BSP), 70 l/min (3/4" BSP) |
| Weight (Kg) | 1.44 |
| Dimensions (mm) A | 86 (1/2" BSP), 100 (3/4" BSP) |
| Dimensions (mm) B | 47 (1/2" BSP), 55 (3/4" BSP) |
| Dimensions (mm.) C | 72 (1/2" BSP), 90 (3/4" BSP) |
| Dimensions (mm.) D | 65 (1/2" BSP), 75 (3/4" BSP) |
| Voltage | 12 V., 24 V. |
| Thread (Note A) | 1/2" BSP, 3/4" BSP |
| Circuit | Closed, Open |
