07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

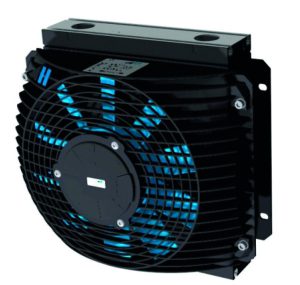

Oil cooler by air draught up to 150 l/min. Includes as series: relay, thermostat (fixed at 47ºC) and connections kit. To purchase accessories visit: Thermostat Connections Box Fan
| SKU | Volts | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 907719 | 12v | - | - | - | - |
| 907819 | 24v | - | - | - | - |
Oil cooler by air draught up to 150 l/min. Includes as series: relay, thermostat (fixed at 47ºC) and connections kit.
To purchase accessories visit:
Thermostat
Connections Box
Fan
| Atributo | Valor |
|---|---|
| Power | 0,11 Kw |
| Air flow | 0,32 Kg/s |
| Noise level | 74 db (A) |
| Weight (Kg) | 9,3 Kg |
| Working pressure | 26 bar (estática static) |
| Thread | BSP 1” |
| Volts | 12v, 24v |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
