Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

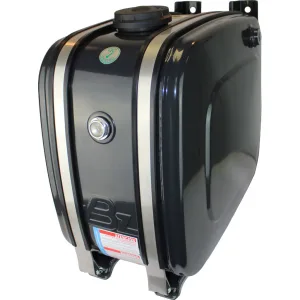

Oil tank for side mounting with filter flange & Level indicator. Finished in painted steel. Oil filter: optional.
| SKU | Capacity | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 90SS75M | 75 litres | 38.00 | 640.00 | 350.00 | 500.00 |
| 90SS10M | 100 litres | 39.00 | 640.00 | 400.00 | 500.00 |
Oil tank for side mounting with filter flange & Level indicator. Finished in painted steel.
Oil filter: optional.
| Atributo | Valor |
|---|---|
| Filter | Multi-function |
| B | G 1 1/4" (75 L), G 1 1/2" (100 L) |
| Note 1 | Oil charging plug |
| Note 2 | Suction connection (B) |
| Note 3 | Return connection BSP 1” |
| Note 4 | Filter flange |
| Note 5 | Level Indicador |
| Note 6 | Bracket Angle |
| Note 7 | Optional brackets for Mercedes Actros |
| ACCESSORY: Bracket | 9027410 (Optional Actros: 9038710) |
| ACCESSORY: Strap | 9029210 |
| ACCESSORY: Rubber protector | 9027510 |
| ACCESSORY: Strap protector | 9029310 |
| ACCESSORY: Fixing kit | 9027710 |
| Optional: Filter | 9040910 |
| Optional: cover | 901310 |
| Optional: oil vent plug | 9014699 |
| Capacity | 75 litres, 100 litres |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
