07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Gear pump with reversible Rotation direction and internal drainage. Built in aluminium body, lighter than casting pumps, allows it to work at high pressures with a low level of noise.
| SKU | Tipo de bomba | Tamaño de la bomba | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 5060806 | ISO 4 (BEA) | 11 | 4.35 | - | - | - |
| 5060906 | ISO 4 (BEA) | 17 | 4.82 | - | - | - |
| 5061206 | UNI 3 (BEAU) | 11 | 4.35 | - | - | - |
| 5061306 | UNI 3 (BEAU) | 17 | 4.82 | - | - | - |

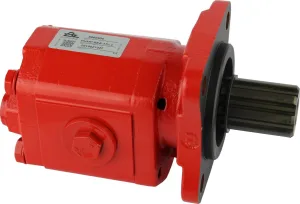

The BEA(U) 11-17cc Gear Pump from Bezares is a lightweight and silent unit to enhance your hydraulic system. Both its aluminum casing and compact design, with lateral and rear ports, make installation easy, even in tight spaces. These advantages make it ideal for small applications. Contact us today for more information on how the BEA pump can optimize the performance of your hydraulic system.
| Atributo | Valor |
|---|---|
| Displacement (cm3/rev) | 10.6 (BEA 11), 16 (BEA 17) |
| Maximum continuos pressure (P1) (bar) | 250, 275 |
| Maximum peak pressure (P3) (bar) | 300, 275 |
| Speed (r.p.m) máx. (P1) | 2000 |
| Speed (r.p.m.) min. (P1) | 500 |
| Input Pressure (recommended) | 0.7÷ 3 bar (abs) |
| Temperatures | From -25ºC to +80ºC |
| Recommended Oil | Mineral oil based hydraulic fluids to ISO / DIN and fire resistant fluids. |
| Viscosity recommended | De 12 ÷ 100 mm2/s (cST) |
| Viscosity allowed | Max. 750 mm2/s (cST) |
| Tipo de bomba | ISO 4 (BEA), UNI 3 (BEAU) |
| Tamaño de la bomba | 11, 17 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
