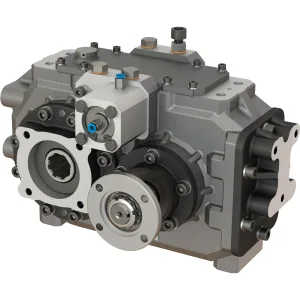

07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Suitable for vehicles up to 120 HP
Auxiliary PTO can be added to drive heavy duty auxiliary equipment.
Auxiliary power can be transmitted while the vehicle is in motion.
Single mode for quick reaction vehicles Dual mode for Small Jetting and Vacuum applications
| SKU | Ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 6018399 | 1:1 | - | - | - | - |
| 6018199 | 1:1.2 | - | - | - | - |
Suitable for vehicles up to 120 HP
Auxiliary PTO can be added to drive heavy duty auxiliary equipment.
Auxiliary power can be transmitted while the vehicle is in motion.
Single mode for quick reaction vehicles Dual mode for Small Jetting and Vacuum applications
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 2500 |
| Intermittent Torque (Nm) | 3250 |
| Max. Continuous Output Torque (Nm) | 700, 250 |
| Max. Intermittent Output Torque (Nm) | 800, 325 |
| Ratio output 2 | 1:1.47 |
| Rotation PTO | Opposite to engine |
| Output type | Pneumatic, Manual for Emergency |
| PTO operational with vehicle | Stationary, In Motion |
| Ratio | 1:1, 1:1.2 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
