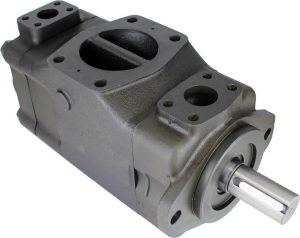

VQ76 Double Vane Pump

VQ76dvp

Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Available Flows: 1st.- 42, 47, 50, 57, 60, 67 & 75 Gal/min. @ 1200 rpm 2nd.- 21, 25, 30, 35, 38 & 45 Gal/min. @ 1200 rpm SHAFT […]

Variantes

Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Available Flows:

  • 1st.- 42, 47, 50, 57, 60, 67 & 75 Gal/min. @ 1200 rpm
  • 2nd.- 21, 25, 30, 35, 38 & 45 Gal/min. @ 1200 rpm
SHAFT END COVER END WEIGHT (Kgs.)
FLOW MAX. rpm PRESSURE (Bar) NOMINAL POWER FLOW MAX. rpm PRESSURE (Bar) NOMINAL POWER
Lts. at 1000 rpm Gal. At 1200 rpm Reduction contin. Intermit. Lts. At 1000 rpm Gal. At 1200 rpm Reduction contin. Intermit.
138 42 15 2200
1800
(VS)
155 175 32.3 66 21 8.6 2400
1800
(VS)
175 210 16.8 55
148 47 15.7 36.3 81 25 9 20.3
162 50 14.3 37.9 97 30 10 24.3
180 57 17.9 43.2 112 35 11.4 27.4
193 60 18.6 46.1 121 38 11.4 29.3
214 67 22 51.2 142 45 13.1 1500 125 150 33.3
240 75 26 57.4



Este producto no tiene especificaciones.
