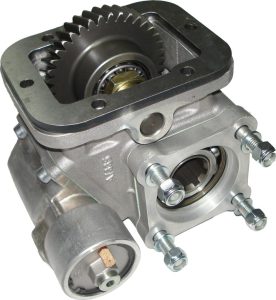

067550 REAR PNEUMATIC – 2 INDEPENDENT OUTPUT / SIDE PISTON
IVECO
Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window o...
Power Take-off two gears, constant mesh, to connect UNI 3 bolts pumps. Electric, mechanical, pneumatic or vacuum shifting, mounting on left side of the Gearbox.
| SKU | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 0611330 | Solenoid-based Electric (needs 9094499 electric kit) | - | - | - | - |
| 0611830 | Vacuum Shifting | - | - | - | - |
| 0611730 | Mechanical Shifting | - | - | - | - |
| 0611630 | Pneumatic shifting | - | - | - | - |
Power Take-off two gears, constant mesh, to connect UNI 3 bolts pumps. Electric, mechanical, pneumatic or vacuum shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 120 |
| Intermittent Torque (Nm) | 170 |
| Power (1000 r.p.m.) | 17 C.V // 13 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 11 |
| Engine to PTO ratio | 1: 1,3 |
| Output type | Pump (UNI) |
| Gearbox | 5S-200, 2830.5, 5S-300 |
| Note A | Rotation |
| Note B | Electric Shifting |
| Note C | Electric Kit with Button control P/N 9094499 |
| Note D | Passing contact switch P/N 100070028 |
| Note E | Engage PTO, thread 1/4” BSP |
| Note F | Passing contact switch. P/N 100070022 |
| Note G | Connector with 3m. of cable P/N 9026899 |
| Note H | Engage PTO, thread 1/8” BSP |
| Note I | Mechanical Shift |
| Shifter type | Mechanical Shifting, Pneumatic shifting, Solenoid-based Electric (needs 9094499 electric kit), Vacuum Shifting |
