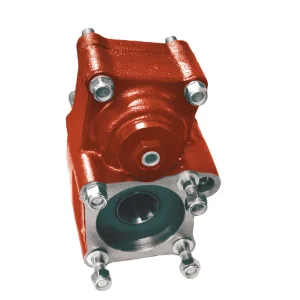

067550 REAR PNEUMATIC – 2 INDEPENDENT OUTPUT / SIDE PISTON
IVECO
Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window o...
Power Take-off two gears, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 4 bolts-window of the Gearbox. Engine to PTO ratio Gearbox Ratio 2845,6 1:0,567 2855,6 1:0,769 2845,5 1:0,567
| SKU | Gearbox | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 062802 | 2845.5 | Flange | - | - | - | - |
| 062803 | 2845.5 | Pump (DIN 5462) | - | - | - | - |
| 062402 | 2845.6 | Flange | - | - | - | - |
| 062203 | 2845.6 | Pump (DIN 5462) | - | - | - | - |
| 062402. | 2855.6 | Flange | - | - | - | - |
| 062203. | 2855.6 | Pump (DIN 5462) | - | - | - | - |
Power Take-off two gears, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 4 bolts-window of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 10 |
| Note A | Engage PTO, thread 1/4” BSP |
| Note B | Rotation |
| Gearbox | 2845.6, 2855.6, 2845.5 |
| Output type | Flange, Pump (DIN 5462) |
