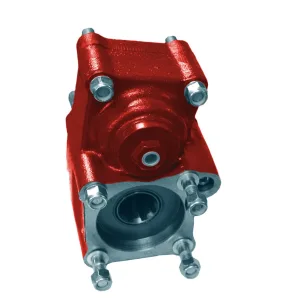

067550 REAR PNEUMATIC – 2 INDEPENDENT OUTPUT / SIDE PISTON
IVECO
Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window o...
Power Take-off 2 gears, internal ratio 1:1,35 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 062502 | Flange | - | - | - | - |
| 062303 | Pump (DIN 5462) | - | - | - | - |
Power Take-off 2 gears, internal ratio 1:1,35 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 10 |
| Engine to PTO ratio | 1: 0,579 |
| Note A | Engage PTO, thread 1/4” BSP |
| Note B | Rotation |
| Gearbox | 2865.6 |
| Output type | Flange, Pump (DIN 5462) |
