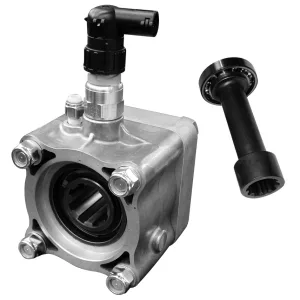

067550 REAR PNEUMATIC – 2 INDEPENDENT OUTPUT / SIDE PISTON
IVECO
Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window o...
Power Take-off one gear, ratio 1:1 with female shaft, mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 067902 | Flange | 7.00 | 90.00 | 106.00 | - |
| 067903 | Pump (DIN 5462) | 7.00 | 90.00 | 106.00 | - |
Power Take-off one gear, ratio 1:1 with female shaft, mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 430 |
| Intermittent Torque (Nm) | 602 |
| Power (1000 r.p.m.) | 61 C.V // 45 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 7 |
| Engine to PTO ratio | 1: 0,770 |
| Gearbox | 2895.9 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Pressure switch P/N (100070018) |
| Note D | Passing contact switch (9024999) |
| Output type | Flange, Pump (DIN 5462) |
