093403 Rear Pneumatic (1:1.32)
SCANIA
Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with ...

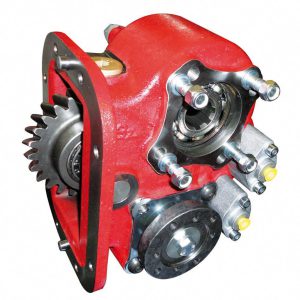

Twin output Power Take-off 3 gears, ratio in upper output 1:1,36. Ratio in bottom output 1:1,69. Mounting on right side 8 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Upper Output Bottom Output Torque (Nm) Continuous 400 Continuous 350 Intermittent 560 Intermittent 490 Power (HP) 1000 r.p.m 57 C.V 50 C.V Pump rotation […]
| SKU | Upper Output | Bottom Output | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 092753 | Pump | Pump | - | - | - | - |
| 092750 | Pump | Flange | - | - | - | - |
Twin output Power Take-off 3 gears, ratio in upper output 1:1,36. Ratio in bottom output 1:1,69. Mounting on right side 8 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Weight (Kg) | 27,3 |
| Mounting Position | Top |
| Max. torque (Nm) | 490Nm |
| Gearbox | GR-900, GRH-900 |
| Upper Output | Flange, Pump |
| Bottom Output | Pump, Flange |
