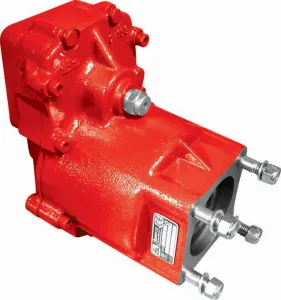

093403 Rear Pneumatic (1:1.32)
SCANIA
Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with ...
Heavy Duty Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with original rear adapter. Optional: Passing contact switch. Engine to PTO ratio High Normal Low GR875 (Z=32 side gear) 1: 1,85 1: 1,35 GR905 (Z=32 side gear) 1: 1,878 1:1,370 GRS895 (Z=32 side gear) 1: […]
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 093902 | Flange | 1:1,85 | - | - | - | - |
| 094002 | Flange | 1:1,35 | - | - | - | - |
| 093903 | Pump (DIN 5462) | 1:1,85 | - | - | - | - |
| 094003 | Pump (DIN 5462) | 1:1,35 | - | - | - | - |
Heavy Duty Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with original rear adapter. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 400 |
| Intermittent Torque (Nm) | 560 |
| Power (1000 r.p.m.) | 57 C.V // 43 KW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 19.5 |
| Gearbox | GR-875, GR-905, GRS-895, GRS-905, GRSO-905 |
| Output type | Flange, Pump (DIN 5462) |
| Internal ratio | 1:1,85, 1:1,35 |
