Description

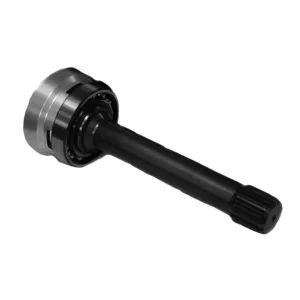

Adapter Kit with splined shaft 14 teeth to connect all range of ZF S6-90 PTO’s.

GEARBOX RATIO
Engine to PTO ratio
(*)
8S 151 / 13.79 1: 0,92
1620 TD / 13.80 – 1.0 1: 0,91
1820 TO / 11.54 – 0.84 1: 1,09
220 TO
12S 2100 TD / 15.57 – 1.0 High 1:1,03
2300 TD
2800 TD
2130TD Normal 1:0,81
2330TD
2830TD
16S 151 / 13.85 – 0.84 High 1:0,92
181
Normal 1:0,77
221
151 / 16.53 – 1.0 High 1:0,92
181
Normal 1:0,77
221
1820 TO / 13.80 – 0.84 High 1:1,09
2220 TO
2520 TO
Normal 1:0,91
2720 TO
2730 TO
1620 TD / 16.41 – 1.0 High 1:0,91
1920 TD
2220 TD
Normal 1:0,77
2320 TD
2330 TD

(*) NOTE:
To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90 releases.

Additional information

Continuous Torque (Nm)

600

Intermittent Torque (Nm)

840

Power (1000 r.p.m.)

85 C.V // 64 kW

Weight (Kg)

2

Note A

Spacer

Note B

6209 Ball Bearing

Note C

Circlip DIN471

Note D

Adapter Shaft
