Description

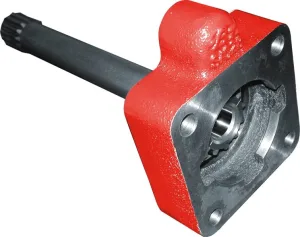

Adapter Kit with splined shaft 14 teeth to connect all range of ZF S6-90 PTO’s.

GEARBOX RATIO

Engine to PTO ratio
(*)

16S-1621 TD/ 1921 TD / 2221 TD/ 2321 TD /2331 TD (+IT) /16.41-1.0 High 1:0,91
Normal 1:0,77
16S-1821 TO/ 2221 TO / 2521 TO/ 2721 TO /2731 TO (+IT) /13.80-0.84 High 1:1,09
Normal 1:0,91
16S-151/181/221 (+IT) /13.80/13.85/16.41/16.47/16.53 High 1:0,92
Normal 1:0,77
12S-2101TD/2301TD/2801TD (+IT3) /15.57-1.0 High 1:1,03
Normal 1:0,81

(*) NOTE:
To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90 releases.

This post is also available in: English (USA) (English (USA)) Español (España) (Spanish (Spain)) Español (Mexico) (Spanish (Mexico)) Deutsch (German) Français (French) Italiano (Italian) Português (Portuguese) 简体中文 (Chinese (Simplified))

Additional information

Continuous Torque (Nm)

600

Intermittent Torque (Nm)

840

Power (1000 r.p.m.)

85 C.V // 64 kW

Weight (Kg)

3.9

Note A

1. Gasket

Note B

2. O-ring

Note C

3. Gasket

Note D

4. Ball bearing 6009

Note E

5. Circlip DIN 471

Note F

6. Adapter shaft
