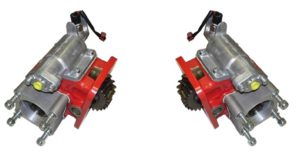

1018703 Side Mount Pneumatic

1018703

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right and left side of the Gearbox. Optional: Passing contact switch. Internal ratio (*) 80%(E) 95%(J) 125%(O) 165%(T) Engine to PTO ratio Total Ratio 1: 0,670 1: 0,730 1: 0,960 1: 1,270

Variantes

SKU	Mounting Position	Internal ratio	Output type	Peso (kg)	A (cm)	B (cm)	C (cm)
1018602E	Right	80%(E)	Flange	-	-	-	-
1018603E	Right	80%(E)	Pump (ISO)	-	-	-	-
1018602J	Right	95%(J)	Flange	-	-	-	-
1018603J	Right	95%(J)	Pump (ISO)	-	-	-	-
1018602O	Right	125%(O)	Flange	-	-	-	-
1018603O	Right	125%(O)	Pump (ISO)	-	-	-	-
1018602T	Right	165%(T)	Flange	-	-	-	-
1018603T	Right	165%(T)	Pump (ISO)	-	-	-	-
1018702E	Left	80%(E)	Flange	-	-	-	-
1018703E	Left	80%(E)	Pump (ISO)	-	-	-	-
1018702J	Left	95%(J)	Flange	-	-	-	-
1018703J	Left	95%(J)	Pump (ISO)	-	-	-	-
1018702O	Left	125%(O)	Flange	-	-	-	-
1018703O	Left	125%(O)	Pump (ISO)	-	-	-	-
1018702T	Left	165%(T)	Flange	-	-	-	-
1018703T	Left	165%(T)	Pump (ISO)	-	-	-	-

1018602E

Mounting Position: Right

Internal ratio: 80%(E)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018603E

Mounting Position: Right

Internal ratio: 80%(E)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018602J

Mounting Position: Right

Internal ratio: 95%(J)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018603J

Mounting Position: Right

Internal ratio: 95%(J)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018602O

Mounting Position: Right

Internal ratio: 125%(O)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018603O

Mounting Position: Right

Internal ratio: 125%(O)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018602T

Mounting Position: Right

Internal ratio: 165%(T)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018603T

Mounting Position: Right

Internal ratio: 165%(T)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018702E

Mounting Position: Left

Internal ratio: 80%(E)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018703E

Mounting Position: Left

Internal ratio: 80%(E)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018702J

Mounting Position: Left

Internal ratio: 95%(J)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018703J

Mounting Position: Left

Internal ratio: 95%(J)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018702O

Mounting Position: Left

Internal ratio: 125%(O)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018703O

Mounting Position: Left

Internal ratio: 125%(O)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018702T

Mounting Position: Left

Internal ratio: 165%(T)

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

1018703T

Mounting Position: Left

Internal ratio: 165%(T)

Output type: Pump (ISO)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

Internal ratio (*)	80%(E)	95%(J)	125%(O)	165%(T)
Engine to PTO ratio Total Ratio	1: 0,670	1: 0,730	1: 0,960	1: 1,270

Internal ratio (*)

80%(E)

95%(J)

125%(O)

165%(T)

Engine to PTO ratio
Total Ratio

1: 0,670

1: 0,730

1: 0,960

1: 1,270

Atributo	Valor
Continuous Torque (Nm)	250
Intermittent Torque (Nm)	350
Power (1000 r.p.m.)	35 C.V // 26 kW
Weight (Kg)	13
Sentido de giro de la bomba	Anti Clockwise
Note A	Air connection, thread 1/4” BSP
Note B	Rotation
Note C	Passing contact switch. P/N 100070028
Note D	Connector with 3m of cable P/N. 9026899
Mounting Position	Right, Left
Internal ratio	125%(O), 165%(T), 95%(J), 80%(E)
Output type	Flange, Pump (ISO)

Atributo

Valor

Continuous Torque (Nm)

250

Intermittent Torque (Nm)

350

Power (1000 r.p.m.)

35 C.V // 26 kW

Weight (Kg)

Sentido de giro de la bomba

Anti Clockwise

Note A

Air connection, thread 1/4” BSP

Note B

Rotation

Note C

Passing contact switch. P/N 100070028

Note D

Connector with 3m of cable P/N. 9026899

Mounting Position

Right, Left

Internal ratio

125%(O), 165%(T), 95%(J), 80%(E)

Output type

Flange, Pump (ISO)
