Description

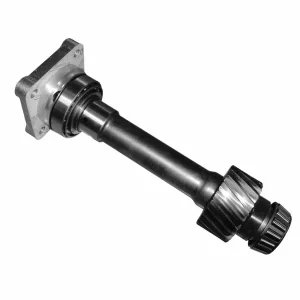

The Power Take-off’s for ecosplit gearboxes series consists of this adapter kit and any of ZF S6-90 range PTO’S.

GEARBOX RATIO
Engine to PTO ratio
(*)
12AS-1420TO, 12AS-1620TO High 1: 1,20
Normal 1: 0,98
12AS-1420TD High 1: 0,98
Normal 1: 0,79

(*) NOTE:
To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90 releases.

Additional information

Continuous Torque (Nm)

500

Intermittent Torque (Nm)

600

Power (1000 r.p.m.)

72 C.V // 54kW

Weight (Kg)

7.5

Note A

1. Gasket

Note B

2. Spacer cover

Note C

3. Guide bush

Note D

4. Adjusting washer

Note E

5. Taper roller bearing 32209A

Note F

6. Adapter shaft

Note G

7. Key

Note H

8. Gear

Note I

9. Taper roller bearing 32306
