Description

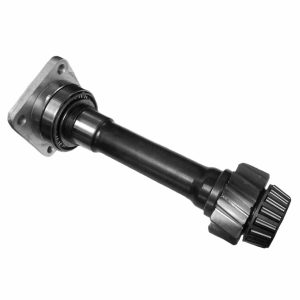

Adapter Kit to convert ZF S6-90 into a 9S-109/12.91, 16S-109/13.31/13.41 Power Take-off’s

GEARBOX RATIO
Engine to PTO ratio
(*)
9S-109 / 12.91 1: 0,72
9S-1110TO / 9.48 – 0.75 (Volvo ZTO 1109) 1: 0,97
9S-1310TO
9S-1315TO
/ 9.48 1: 0,97
16S-109 /13.31 High 1: 0,90
Normal 1: 0,75

NOTE: To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90 releases.

This post is also available in: English (USA) (English (USA)) Español (España) (Spanish (Spain)) Español (Mexico) (Spanish (Mexico)) Deutsch (German) Français (French) Italiano (Italian) Português (Portuguese) 简体中文 (Chinese (Simplified))

Additional information

Continuous Torque (Nm)

600

Intermittent Torque (Nm)

800

Power (1000 r.p.m.)

85 C.V // 64 kW

Weight (Kg)

5.9

Note A

1. Gasket

Note B

2. Adapter flange

Note C

3. Spacer washer

Note D

4. Adjusting washer

Note E

5. Bearing

Note F

6. Adapter shaft

Note G

7. Gear pinion

Note H

8. Bearing
