Description

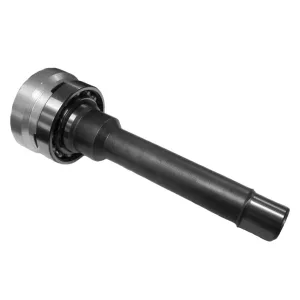

Adapter Kit to connect all range of ZF S6-90 PTO’s.

GEARBOX RATIO
Engine to PTO ratio
(*)
16S-130 /11.46 High 1: 0,97
Normal 1: 0,82
/11.74 High 1: 0,97
Normal 1: 0,82
/13.68 High 1: 0,97
Normal 1: 0,82
/13.80 High 1: 0,92
Normal 1: 0,77
/14.14 High 1: 0,92
Normal 1: 0,77
/14.29 High 1: 0,91
Normal 1: 0,74
/16.47 High 1: 0,92
Normal 1: 0,77
/17.06 High 1: 0,91
Normal 1: 0,74
/17.47 High 1: 0,91
Normal 1: 0,74

(*) NOTE:
To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90 releases.

Additional information

Continuous Torque (Nm)

300

Intermittent Torque (Nm)

420

Power (1000 r.p.m.)

42 C.V // 32 kW

Weight (Kg)

1.5

Note A

1. Spacer

Note B

2. 6009 Ball Bearing

Note C

Circlip DIN471

Note D

Adapter Shaft
