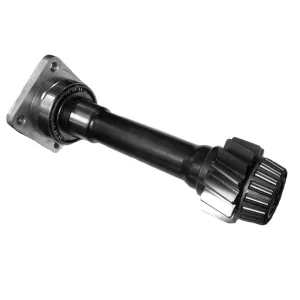

Adapter Kit to convert ZF S6-90 into a 9S-109/12.92, 16S-109/13.04, 16S-109/13.30, 16S-109/13.42 Power Take-off’s.

GEARBOX RATIO
Engine to PTO ratio
(*)
9S-109 / 12.92 1: 0,720
16S – 109 / 13.30 Larga High 1: 0,930
Normal 1: 0,790
/ 13.42 High 1: 0,930
Normal 1: 0,790

(*) NOTE:
To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90 releases.

Additional information

Continuous Torque (Nm)

300

Intermittent Torque (Nm)

420

Power (1000 r.p.m.)

42 C.V // 32 kW

Weight (Kg)

5.8

Note A

1. Adapter flange

Note B

2. Spacer washer

Note C

3. Adjusting washer

Note D

4. Bearing

Note E

5. Adapter shaft

Note F

6. Key

Note G

7. Gear pinion

Note H

8. Bearing
