Description

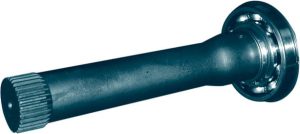

Volvo adapter shaft Kit to connect the PTO splined shaft (for 1140 / 1150) with the female splined shaft of these gearboxes.

ENGINE TO PTO RATIO Gearbox High Normal
R1000, R1400, R1700, VT1708, VT2009B 1: 0,700
SR1400, SR17000, SR1900 1: 0,880 1: 0,700
SR2000 1: 0,820 1: 0,650
SRO2400 1: 1,030 1: 0,820
VT2014B, VT2214B 1: 0,700 1: 0,880
VT2412B 1: 0,700 1: 0,903
VT2514B 1: 0,700 1: 0,880
VTO2214B, VTO2514B 1: 1,094 1: 0,880
VTO2814B 1: 1,12 1: 0,890
NOTES
1 Ball Bearing
2 Adapter Shaft
3 Circlip DIN 471



This post is also available in: English (USA) (English (USA)) Español (España) (Spanish (Spain)) Español (Mexico) (Spanish (Mexico)) Deutsch (German) Français (French) Italiano (Italian) Português (Portuguese) 简体中文 (Chinese (Simplified))

Additional information

Continuous Torque (Nm)

600

Intermittent Torque (Nm)

616

Power (1000 r.p.m.)

63 C.V // 47 kW

Mounting Position

Rear
