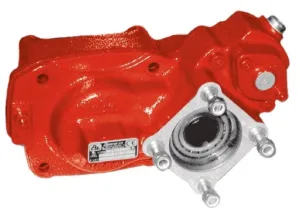

11106K03 Rear Pneumatic (1:1,62)

11106K03

Heavy Duty Power Take-off two gears, constant mesh internal ratio 1: 1,62 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. switch. ENGINE TO PTO RATIO Gearbox High Normal R1000, R1400, R1700 1:1,133 SR1400, SR17000,SR1900 1:1,424 1:1,133 SR2000 1:1,327 1: 1,052 SRO2400 1:1,667 1:1,327 VT1708, VT2009B 1:1,133 VT2014B, […]

Variantes

SKU	Output type	Peso (kg)	A (cm)	B (cm)	C (cm)
11106K03	Pump (DIN 5462)	-	-	-	-
11106K02	Flange	-	-	-	-

11106K03

Output type: Pump (DIN 5462)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

11106K02

Output type: Flange

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

ENGINE TO PTO RATIO	Gearbox	High	Normal
R1000, R1400, R1700	1:1,133
SR1400, SR17000,SR1900	1:1,424	1:1,133
SR2000	1:1,327	1: 1,052
SRO2400	1:1,667	1:1,327
VT1708, VT2009B	1:1,133
VT2014B, VT2214B	1:1,424	1:1,133
AT-2412C, AT-2412D, AT-2512C, AT-2612D, AT-2612E, AT-2812C, AT-2812D, V-2412AT, V-2512AT, V-2812AT, VT-2512C, VT-2812C, V-2812AT, VT2514B	1:1,462	1:1,133
VTO2214B, VTO2514B	1:1,771	1:1,424
DT-2412 C	1:1,426	1:1,134
V2412AT, V2512AT, V2812AT	1:1,458	1:1,134
VO2512AT, VO3112AT	1:1,863	1:1,458
NOTES
Note A	Air connection, thread 1/8” BSP
Note B	Rotation
Note C	Pressure switch. P/N 100070018
Note D	Passing contact switch. P/N 9024999
Gearboxes	Ref.
Adapter shaft kit	R1000, SR1700, … (L=265mm)	110204
R1000, … Retarder (L=300mm)	110504
DT-2412C, V2412 (L=227 mm)	116704

ENGINE TO PTO RATIO

Gearbox

High

Normal

R1000, R1400, R1700

1:1,133

SR1400, SR17000,SR1900

1:1,424

1:1,133

SR2000

1:1,327

1: 1,052

SRO2400

1:1,667

1:1,327

VT1708, VT2009B

1:1,133

VT2014B, VT2214B

1:1,424

1:1,133

AT-2412C, AT-2412D, AT-2512C, AT-2612D, AT-2612E,
AT-2812C, AT-2812D, V-2412AT, V-2512AT, V-2812AT,
VT-2512C, VT-2812C, V-2812AT, VT2514B

1:1,462

1:1,133

VTO2214B, VTO2514B

1:1,771

1:1,424

DT-2412 C

1:1,426

1:1,134

V2412AT, V2512AT, V2812AT

1:1,458

1:1,134

VO2512AT, VO3112AT

1:1,863

1:1,458

NOTES

Note A

Air connection, thread 1/8” BSP

Note B

Rotation

Note C

Pressure switch. P/N 100070018

Note D

Passing contact switch. P/N 9024999

Gearboxes

Ref.

Adapter shaft kit

R1000, SR1700, … (L=265mm)

110204

R1000, … Retarder (L=300mm)

110504

DT-2412C, V2412 (L=227 mm)

116704

Atributo	Valor
Continuous Torque (Nm)	400
Intermittent Torque (Nm)	560
Power (1000 r.p.m.)	57 C.V // 43 KW
Mounting Position	Rear
Sentido de giro de la bomba	Clockwise
Weight (Kg)	18
Gearbox	R-1700, AT-2612D, SR-1400, AT-2612E, SR-1700, AT-2812C, SR-1900, AT-2812D, SR-2000, V-2412AT, SRO-2400, V-2512AT, VT-1708, V-2812AT, VT-2009B, VO-2512AT, VT-2014B, VO-3112AT, VT-2214B, VT-2512C, VT-2514B, VT-2812C, VTO-2214B, DT-2412 C, VTO-2514B, AT-2412C, R-1000, AT-2412D, R-1400, AT-2512C
Output type	Flange, Pump (DIN 5462)

Atributo

Valor

Continuous Torque (Nm)

400

Intermittent Torque (Nm)

560

Power (1000 r.p.m.)

57 C.V // 43 KW

Mounting Position

Rear

Sentido de giro de la bomba

Clockwise

Weight (Kg)

Gearbox

R-1700, AT-2612D, SR-1400, AT-2612E, SR-1700, AT-2812C, SR-1900, AT-2812D, SR-2000, V-2412AT, SRO-2400, V-2512AT, VT-1708, V-2812AT, VT-2009B, VO-2512AT, VT-2014B, VO-3112AT, VT-2214B, VT-2512C, VT-2514B, VT-2812C, VTO-2214B, DT-2412 C, VTO-2514B, AT-2412C, R-1000, AT-2412D, R-1400, AT-2512C

Output type

Flange, Pump (DIN 5462)
