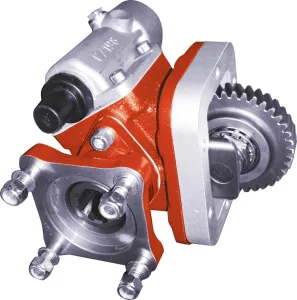

164403 PTO side mount, 4 bolts, mechanical shifting, backwards piston
TOYOTA
PTO TOYOTA DYNA M. MECHANICAL SHIFTING (451) Continuous Torque (Nm): 160 Intermittent Torque (Nm): 220 Max. Power (kW):1...
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum , mechanical and pneumatic shifting, mounting on left side of the Gearbox. NOTES Kit vacuum, Single acting 12V. 9027899 Note A Passing contact switch. P/N 100070001 Note B Rotation Note C Connector with 3m. of cable P/N 906599 Note D Engage PTO, […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 163703 | Pump (DIN 5462) | Vacuum Shifting | - | - | - | - |
| 161203 | Pump (DIN 5462) | Mechanical Shifting | - | - | - | - |
| 164203 | Pump (DIN 5462) | Pneumatic shifting | - | - | - | - |
| 163702 | Flange | Vacuum Shifting | - | - | - | - |
| 161202 | Flange | Mechanical Shifting | - | - | - | - |
| 164202 | Flange | Pneumatic shifting | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum , mechanical and pneumatic shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 12.5 |
| Engine to PTO ratio | 1: 0,84 |
| Gearbox | M153, DYNA 280 |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
