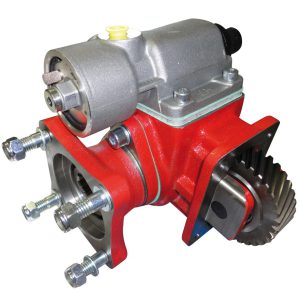

163703 Side Mount Vacuum – Single Acting
TOYOTA
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum , mechanical and pneumatic shifting, mount...
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum mechanical and pneumatic shifting, mounting on left side of the Gearbox. NOTES Kit vacuum, Single acting 12V. 9027899 Note A Passing contact switch. P/N 100070017 Note B Rotation Note C Connector with 3m. of cable P/N 9026899 Note D Engage PTO, thread […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 164303 | Pump (DIN 5462) | Vacuum Shifting | - | - | - | - |
| 164303 | Pump (DIN 5462) | Mechanical Shifting | - | - | - | - |
| 164303 | Pump (DIN 5462) | Pneumatic shifting | - | - | - | - |
| 164302 | Flange | Vacuum Shifting | - | - | - | - |
| 164402 | Flange | Mechanical Shifting | - | - | - | - |
| 163102 | Flange | Pneumatic shifting | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum mechanical and pneumatic shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 160 |
| Intermittent Torque (Nm) | 220 |
| Power (1000 r.p.m.) | 22 C.V // 16 KW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 10 |
| Engine to PTO ratio | 1: 0,55 |
| Gearbox | DYNA M, R451 |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
