265503 Side Mount, Pneumatic
HINO
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, pneumatic or mechanic shifting ...

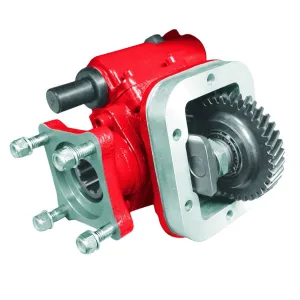

Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum shifting, mounting on left side of the Gearbox. Engine to PTO ratio Gearbox Ratio MYY 5A, MOYWA 1:0,760 MYY 5S 1:0,660
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 261302 | Flange | Mechanical Shifting | 9.00 | 218.00 | - | 149.00 |
| 261602 | Flange | Vacuum Shifting | 9.00 | 218.00 | - | 149.00 |
| 261303 | Pump (ISO) | Mechanical Shifting | 9.00 | 218.00 | - | 149.00 |
| 261603 | Pump (ISO) | Vacuum Shifting | 9.00 | 218.00 | - | 149.00 |
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 9 |
| Note A | Engage PTO, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Mechanical operation |
| Note F | Passing contact switch. P/N. 100070028 |
| Gearbox | MYY-5A, MYY-5S, MOYWA |
| Output type | Flange, Pump (ISO) |
| Shifter type | Vacuum Shifting, Mechanical Shifting |
