265503 Side Mount, Pneumatic
HINO

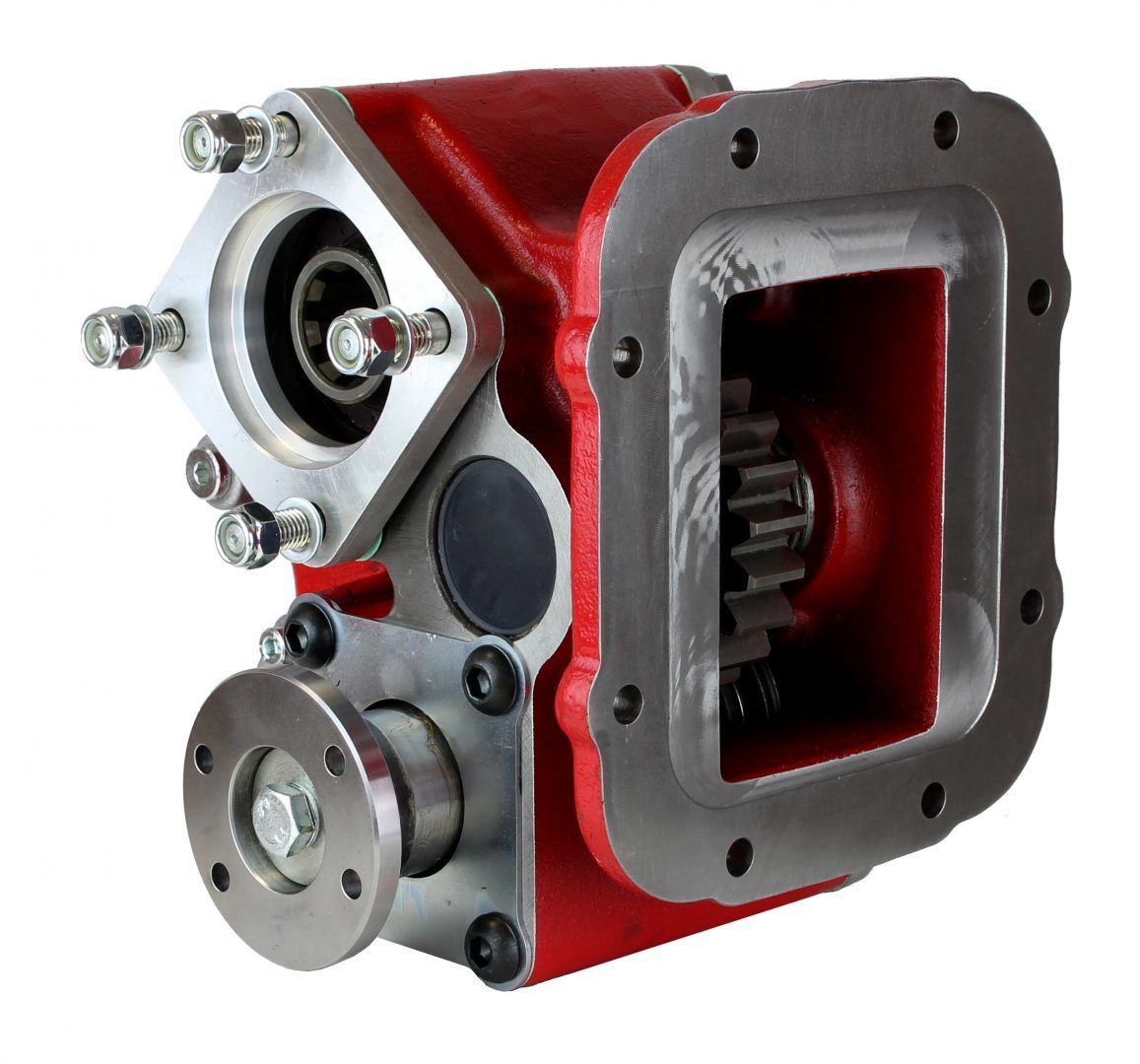

Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, pneumatic or mechanic shifting ...
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Mechanical, vacuum, pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch.
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 262002 | Flange | Mechanical Shifting | 13.00 | - | - | - |
| 261902 | Flange | Pneumatic shifting | 13.00 | - | - | - |
| 261802 | Flange | Vacuum Shifting | 13.00 | - | - | - |
| 262003 | Pump (DIN 5462) | Mechanical Shifting | 13.00 | - | - | - |
| 261903 | Pump (DIN 5462) | Pneumatic shifting | 13.00 | - | - | - |

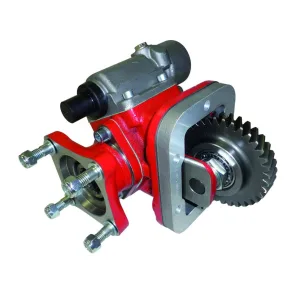

| 261803 | Pump (DIN 5462) | Vacuum Shifting | 13.00 | - | - | - |
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Mechanical, vacuum, pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 13 |
| Engine to PTO ratio | 1: 1,030 |
| Note A | Engage PTO, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Mechanical operation |
| Note F | Passing contact switch. P/N. 100070028 |
| Gearbox | M550 |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
