265503 Side Mount, Pneumatic
HINO
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, pneumatic or mechanic shifting ...

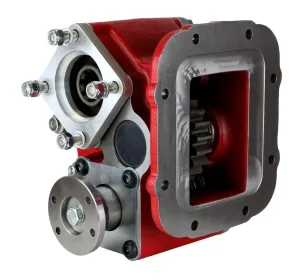

Twin independent output Power Take-off. Pneumatic shifting, mounting on left side of the Transmission. Optional: Passing contact switches. Engine to PTO ratio Gearbox Ratio M009-OD 1:1,03 M009-DD 1:0,75
| SKU | Upper Output | Bottom Output | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 264552 | Flange | Flange | 27.00 | 227.00 | 202.00 | 268.00 |
| 264551 | Flange | Pump | - | - | - | - |
| 264550 | Pump | Flange | 27.00 | 227.00 | 202.00 | 268.00 |
| 264553 | Pump | Pump | 27.00 | 227.00 | 202.00 | 268.00 |
Twin independent output Power Take-off. Pneumatic shifting, mounting on left side of the Transmission. Optional: Passing contact switches.
| Atributo | Valor |
|---|---|
| Single output torque (Nm) | 250 |
| Both outputs simultaneously torque (Nm) | 350 |
| Power (1000 r.p.m.) | 35 C.V // 27 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 27 |
| Note A | Engage PTO, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070028 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Transmission flange |
| Gearbox | M009DD, M009OD |
| Upper Output | Flange, Pump |
| Bottom Output | Flange, Pump |
