109903 Rear Pneumatic (1:1,32)
ZF
Power Take-off two gears, internal ratio 1:1,32, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bo...

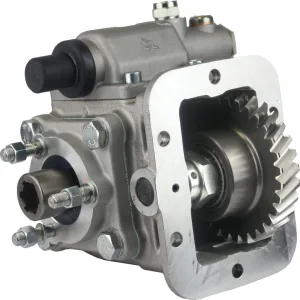

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Mechanical and pneumatic and Vacuum shifting, mounting on left / right side of the Gearbox. NOTES Kit vacuum Single acting 12V. 9027899 Note A Rotation Note B Engage PTO, thread 1/4” BSP Note C Passing contact switch. P/N 100070017 Note D Connector […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 1019903 | Pump (DIN 5462) | Mechanical shifting - Left | - | - | - | - |
| 1020003 | Pump (DIN 5462) | Pneumatic shifting - Left | - | - | - | - |
| 1021230 | Pump (UNI) | Pneumatic shifting - Right | - | - | - | - |
| 1020030 | Pump (UNI) | Pneumatic shifting - Left | - | - | - | - |
| 1020730 | Pump (UNI) | Mechanic shifting - Right | - | - | - | - |
| 1019930 | Pump (UNI) | Mechanical shifting - Left | - | - | - | - |
| 1021130 | Pump (UNI) | Vacuum shifting - Right | - | - | - | - |
| 1020230 | Pump (UNI) | Vacuum shifting - Left | - | - | - | - |
| 1020203 | Pump (DIN 5462) | Vacuum shifting - Left | - | - | - | - |
| 1020203 | Flange | Vacuum shifting - Left | - | - | - | - |
| 1019902 | Flange | Mechanical shifting - Left | - | - | - | - |
| 1020002 | Flange | Pneumatic shifting - Left | - | - | - | - |
| 1021103 | Pump (DIN 5462) | Vacuum shifting - Right | - | - | - | - |
| 1020703 | Pump (DIN 5462) | Mechanic shifting - Right | - | - | - | - |
| 1020203 | Pump (DIN 5462) | Pneumatic shifting - Right | - | - | - | - |
| 1021102 | Flange | Vacuum shifting - Right | - | - | - | - |
| 1020702 | Flange | Mechanic shifting - Right | - | - | - | - |
| 1021202 | Flange | Pneumatic shifting - Right | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Mechanical and pneumatic and Vacuum shifting, mounting on left / right side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 180 |
| Intermittent Torque (Nm) | 250 |
| Power (1000 r.p.m.) | 25 C.V // 19 kW |
| Mounting Position | Right, Left |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 8 |
| Engine to PTO ratio | 1: 1,25 |
| Gearbox | 6S-380 VO, 6S-400, 6S-420, 2840.6, 6AS-400 |
| Output type | Pump (UNI), Flange, Pump (DIN 5462) |
| Shifter type | Mechanic shifting - Right, Mechanical shifting - Left, Vacuum shifting - Right, Vacuum shifting - Left, Pneumatic shifting - Right, Pneumatic shifting - Left |
